Fortanix Runtime Encryption Appliance FX2200 Series I

Fortanix Runtime Encryption Appliance FX2200 node is the ideal building block for implementing Fortanix DSM in a private cloud or as a managed service. With DSM, you can securely generate, store, and use cryptographic keys and certificates, as well as secrets, such as passwords, API keys, tokens, or any blob of data.

Download Datasheet

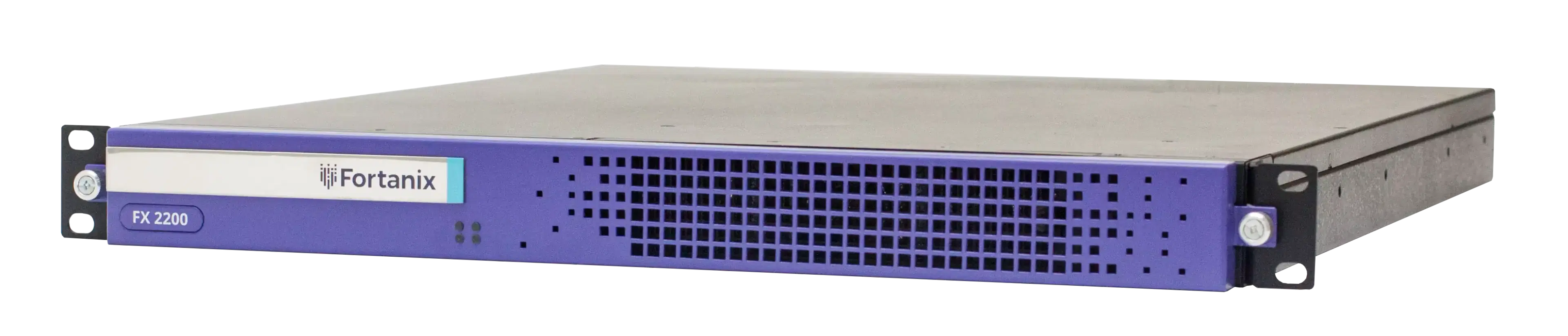

fx2200 runtime encryption appliance

Fortanix Runtime Encryption Appliance FX2200 Series I node is the ideal building block for implementing Fortanix DSM™ in a private cloud or as a managed service.

With Fortanix DSM, you can securely generate, store, and use cryptographic keys and certificates, as well as secrets, such as passwords, API keys,tokens, or any blob of data. Built from the ground up for modern cloud applications, Fortanix DSM provides REST APIs alongside traditional interfaces, native server-side clustering, centralized management, secure audit logs, and more!

fips validated 140-2

HSM-grade Security with Software-defined Simplicity

• Integrated HSM, key management, plug-in and tokenization • Secured with Intel® SGX to ensure that only authorized user has access to your keys and data • Based on x86 server hardware with software-defined simplicity and economics
trusted autoscale

Trusted Auto Scaling

• Get started with as little as three FX2200 Series I nodes • Scale-out with linear and consistent performance by simply adding individual node • Support on-premise, hybrid cloud or multi-cloud applications
always on

Always On

• Highly available, Always-on clustered design • Non-disruptive upgrade and maintenance operations • Central monitoring tools and integrations • Robust application support and services

Technical Specification

Fortanix Runtime Encryption Appliance FX2200 Series I
Node Specification

Cryptography Full NSA Suite B algorithms
Interfaces supported REST APIs, PKCS#11, CNG, JCE
Certifications FIPS 140-2 Level 3 validated
Operating environment Fortanix DSM™ (running on Ubuntu Linux 16.04)
Management / Monitoring Centralized Management with Web UI, CLI and APIs Syslog, Splunk integration
High Availability Scale-out clustered design with built-in HA / DR
Reliability Solid-state devices (SSD) Dual-hot power supplies, Field replaceable components MTBF 250,000 hours (basis of parts count method)
Network Connectivity 2 x 10G ethernet ports, 1 x IPMI port
Processor Intel Xeon E3 (support for SGX)
Memory 32GB RAM
Dimensions 1U Rackmount
Weight 47lbs / 21.319Kg
Power Supply 300 watts
Voltage / Frequency 110-240 V / 50-60 Hz
Thermal Rating 1,164 BTU/hr (maximum)
Temperature Operating: -5 to 40 C° / storage -40 to 70 C°
Safety and Environmental FCC Class B

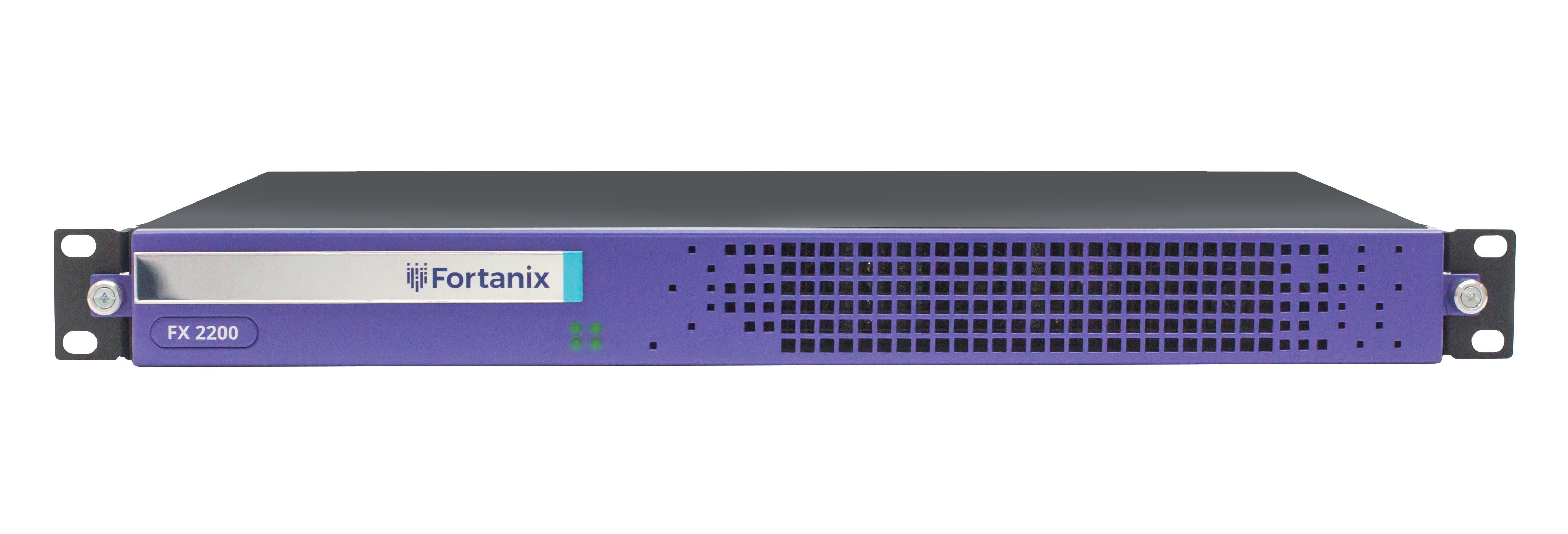

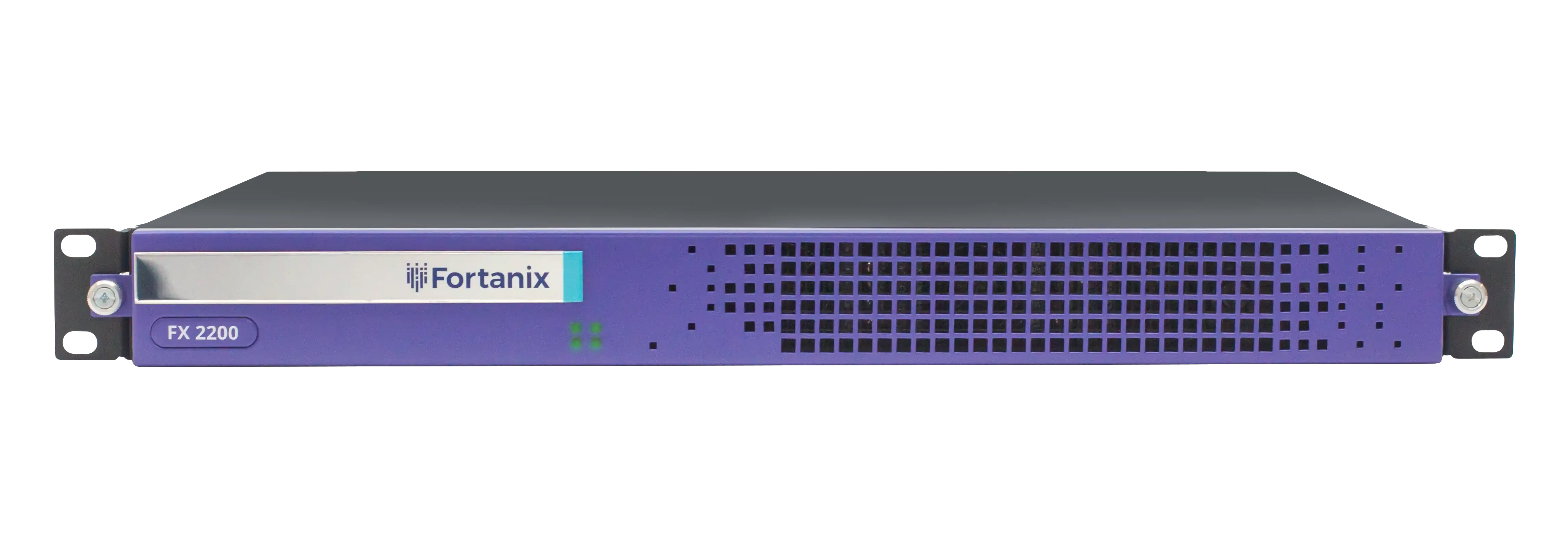

frontFortanix Runtime Encryption Appliance FX2200 Series I - front view

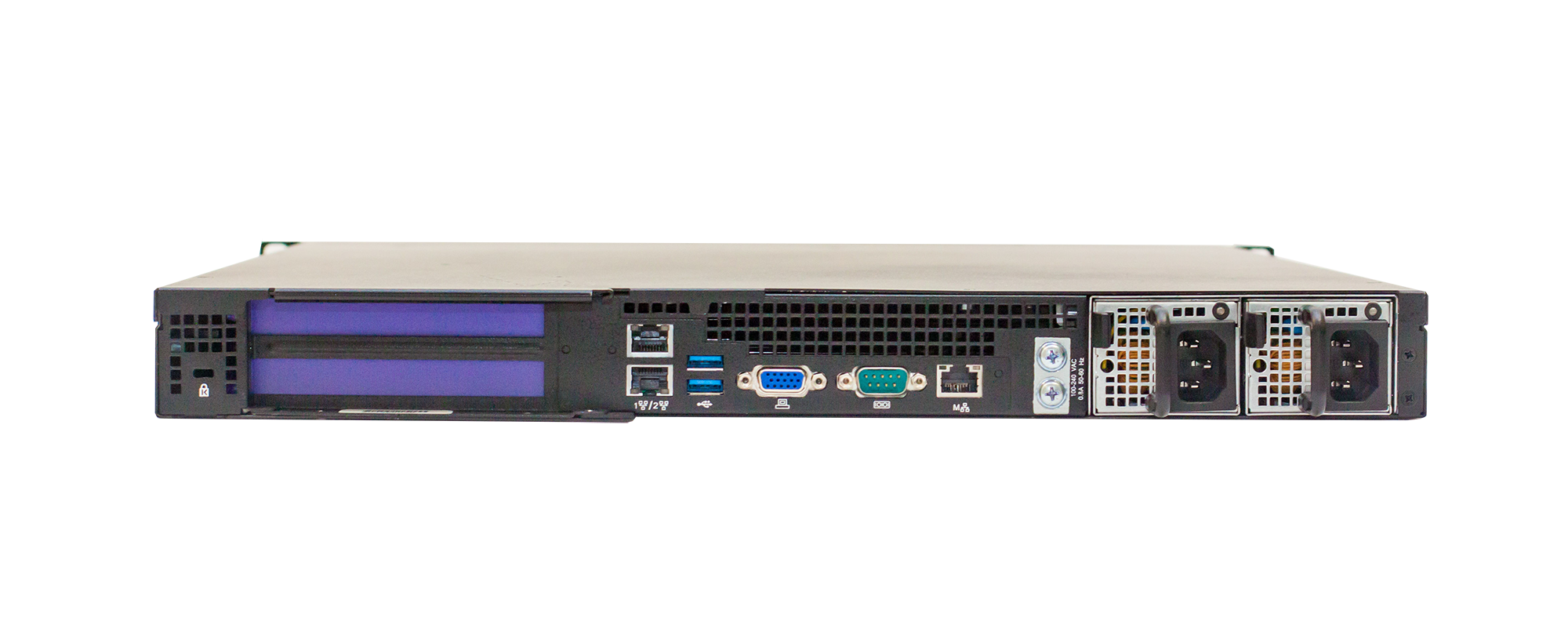

backFortanix Runtime Encyption Appliance FX2200 Series I - rear view
