Fortanix FX3400 Appliance
Fortanix FX3400 appliance was born in the Cloud and is used across the globe, in the largest Data Centers. Designed to deliver secure Key Management, Hardware Security Module and Cryptography services.
The Fortanix FX3400 appliance is the ideal building block for implementing Fortanix Data Security Manager on-premises, in a private cloud, or as a managed service. With Fortanix Data Security Manager, you can securely generate, store, and use cryptographic keys and certificates, as well as secrets, such as passwords, API keys, tokens, etc. Built from the ground up for modern workloads, Fortanix Data Security Manager provides REST APIs alongside traditional interfaces, native server-side clustering, centralized management, secure audit logs, and more. With Fortanix DSM, you now can unify management, drive crypto agility, and enforce compliance, while ensuring absolute control over data access.
HSM-Grade Security with Software-Defined Simplicity
- FIPS 140-3 level-3 compliant
- Integrated HSM, key management, plug- in and tokenization
- Secured with Intel® SGX to ensure that only authorized users have access to your keys and data
Trusted Auto Scaling
- Get started with as little as three FX3400 appliances
- Trusted auto-scaling by using quorum distributed computing
- Supports on-premises, hybrid cloud or multi-cloud applications
Always On
- Highly available, always-on clustered design
- Non-disruptive upgrade and maintenance operations
- Central monitoring tools and integrations
- Robust application support and services
Technical Specifications
| ITEMS | SPECIFICATION |
|---|---|
| Cryptography | Full NSA Suite B algorithms and more |
| Interfaces supported | REST APIs, PKCS#11, Microsoft CAPI and CNG, JCE, KMIP |
| Certifications | FIPS 140-3 Level 3* |
| Operating environment | Fortanix Data Security Manager |
| Management/ Monitoring | Centralized Management with Web UI, CLI and APIs Syslog, Splunk integration |
| High Availability | Scale-out clustered design with built-in HA / DR |
| Reliability | Non Rotating media-Solid State Devices Dual Redundant Power Supplies, FRUs (Field Replaceable Units) MTBF 156,000 hours (basis of parts count method) |
| Network Connectivity | Dual Copper 10 Gigabit Ethernet, 10GBASE-T, IEEE802.3an, supporting link aggregation Gigabit Ethernet, 1000Base-T 100 Mb Ethernet: 100BASE-TX 1 x IPMI port: Gigabit Ethernet 1000Base-T |
| (Fibre Unit only) | Dual SFP28 (Small Form Factor Pluggable) supports: SFI interfaces supports 25GBase-R PCS and 25 Gigabit PMA in order to connect with SFP28 to 25GBase-SR |
| Intel SGX | Enabled |
| Memory | 128 GB high speed memory |
| Power Supply | Dual redundant 500 W AC power supplies |
| Dimensions | 1U Rackmount 19" or 482.6 mm (w) x 22" or 559 mm (d) x 1.75" or 44.45 mm (h) |
| Weight | 25 lbs or 11.34 kg |
| Voltage/ Frequency | 100 V, 63 Hz, 5 A to 240 V, 47 Hz, 2.5 A |
| Thermal Rating | 1939 BTU/hr (maximum) |
| Temperature | Operating: 0 °C to 40 °C; Storage: -40 °C to 70 °C |
| Safety and Environmental | FCC, CE, GS, RoHS, C-Tick |

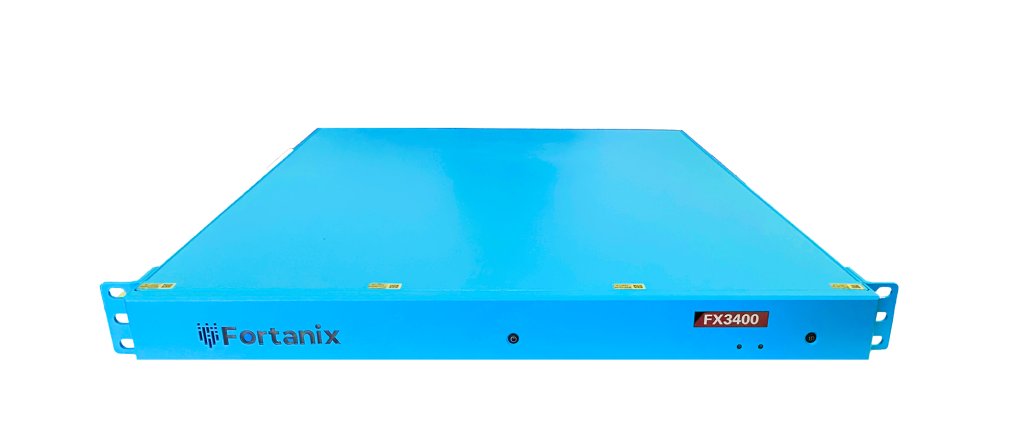

Front view of Fortanix Appliance (FX3400)

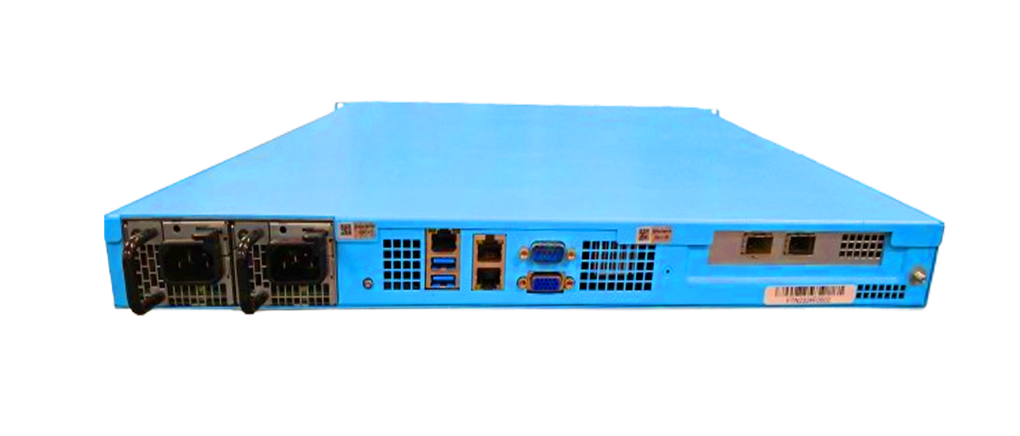

Fiber Unit Rear view of Fortanix Appliance (FX3400)

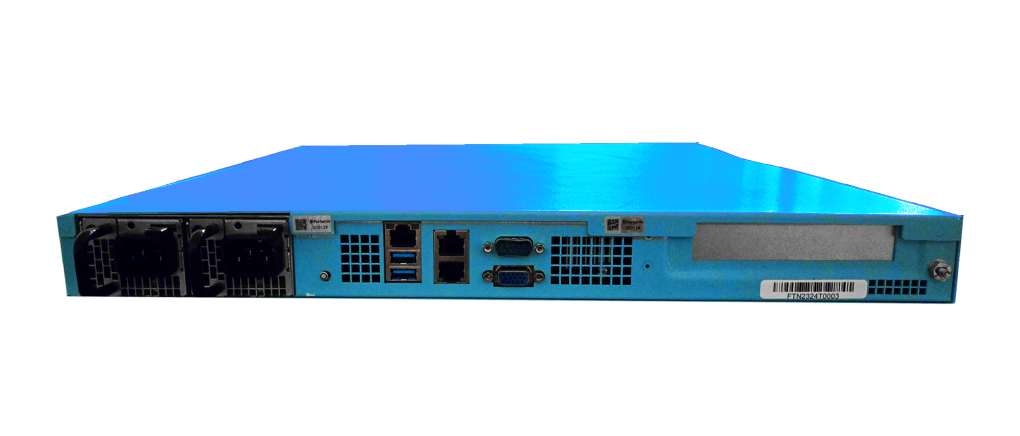

Copper Unit Rear view of Fortanix Appliance (FX3400)
