Fortanix Runtime Encryption Appliance FX2200 Series II

Fortanix Runtime Encryption Appliance FX2200 node is the ideal building block for implementing Fortanix Data Security Manager in a private cloud or as a managed service. With DSM, you can securely generate, store, and use cryptographic keys and certificates, as well as secrets, such as passwords, API keys, tokens, or any blob of data.

Download Datasheet

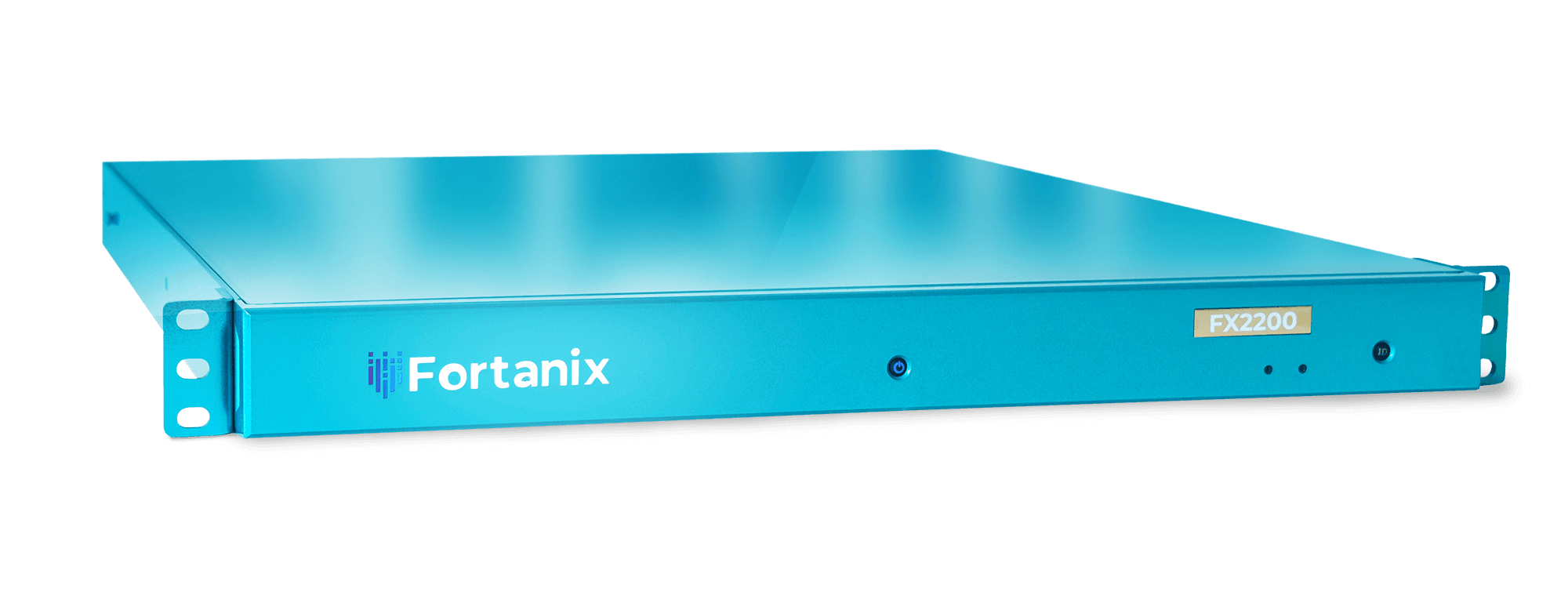

fx2200 II HSM

Fortanix Runtime Encryption Appliance FX2200 Series II was born in the Cloud and used across the globe, in the argest Data Centers. Designed to deliver secure Key Management, Hardware Security Module and Cryptography services.

Fortanix Runtime Encryption Appliance FX2200 Series II is the ideal building block for implementing Fortanix Data Security Manager in a private cloud or as a managed service. With Fortanix Data Security Manager, you can securely generate, store, and use cryptographic keys and certificates, as well as secrets, such as passwords, API keys, tokens, or any blob of data. Built from the ground up for modern cloud applications, Fortanix Data Security Manager provides REST APIs alongside traditional interfaces, native server-side clustering, centralized management, secure audit logs, and more!

key storage module

HSM-grade Security with Software-defined Simplicity

  • FIPS 140-2 level-3 compliant
  • Integrated HSM, key management, plug-in and tokenization
  • Secured with Intel® SGX to ensure that only authorized user has access to your keys and data
trusted auto scaling

Trusted Auto Scaling

  • Get started with as little as three FX2200 Series II
  • Trusted auto-scaling by using quorum distributed computing
  • Support on-premise, hybrid cloud or multi-cloud applications
always on

Always On

  • Highly available, Always-on clustered design
  • Non-disruptive upgrade and maintenance operations
  • Central monitoring tools and integrations
  • Robust application support and services

Technical Specification

Fortanix Runtime Encryption Appliance FX2200 Series II
Node Specification

Cryptography Full NSA Suite B algorithms and more
Interfaces supported REST APIs, PKCS#11, Microsoft CAPI and CNG, JCE,
KMIP
Certifications FIPS 140-2 Level 3
Operating environment Fortanix Data Security Manager (running on Ubuntu Linux)
Management / Monitoring Centralized Management with Web UI, CLI and APIs
Syslog, Splunk integration
High Availability Scale-out clustered design with built-in HA / DR
Reliability Non Rotating media- Solid State Devices
Dual Redundant Power Supplies, FRU’s (Field
Replaceable Units)
MTBF 250,000 hours (basis of parts count method)
Network Connectivity Dual Copper 10Gigabit Ethernet, 10GBASE-T, IEEE
802.3an, supporting link aggregation
Gigabit Ethernet, 1000Base-T
100 Mb Ethernet : 100BASE- TX
1 x IPMI port
Dual SFP28 (Small Form Factor Pluggable) supports: SFI interfaces supports 25GBase-R PCS and
25 Gigabit PMA in order to connect with SFP28 to
25GBase-SR
Processor Intel® SGX
Memory 64GB high speed memory
Dimensions 1U Rackmount
Weight 47lbs / 21.319Kg
Power Supply Dual redundant 300w AC power supplies
Voltage / Frequency AC input: 100-240v 63-47hz 5-2.5a
Thermal Rating 1,164 BTU/hr (maximum)
Temperature Operating: -5 to 40 C° / storage -40 to 70 C°
Safety and Environmental FFCC class B, CE, TUV, GS, RoHS, C-Tick, CCC, VCCI

frontfront

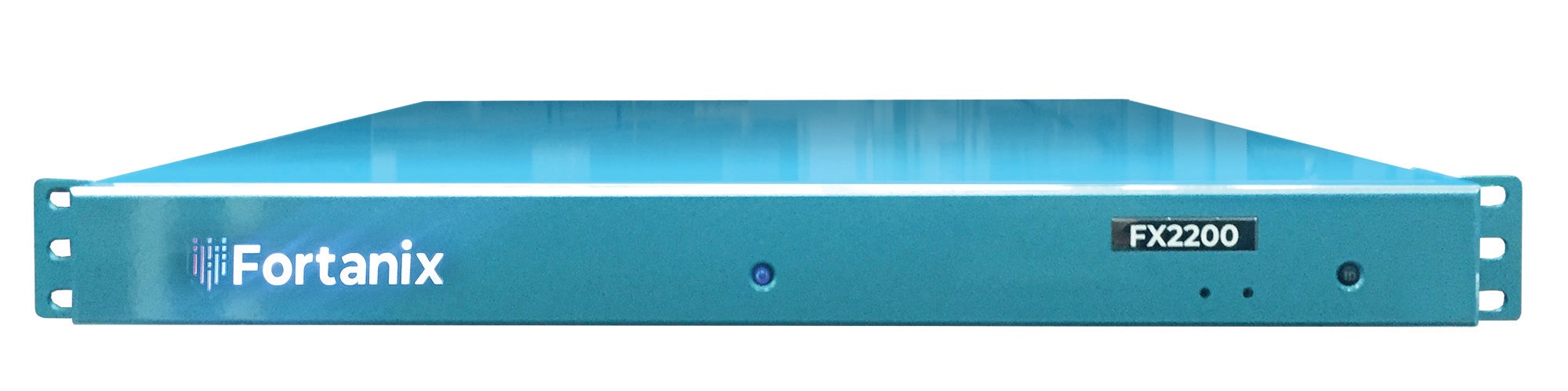

Front view of Fortanix Runtime Encryption Appliance (FX2200 Series II)

back

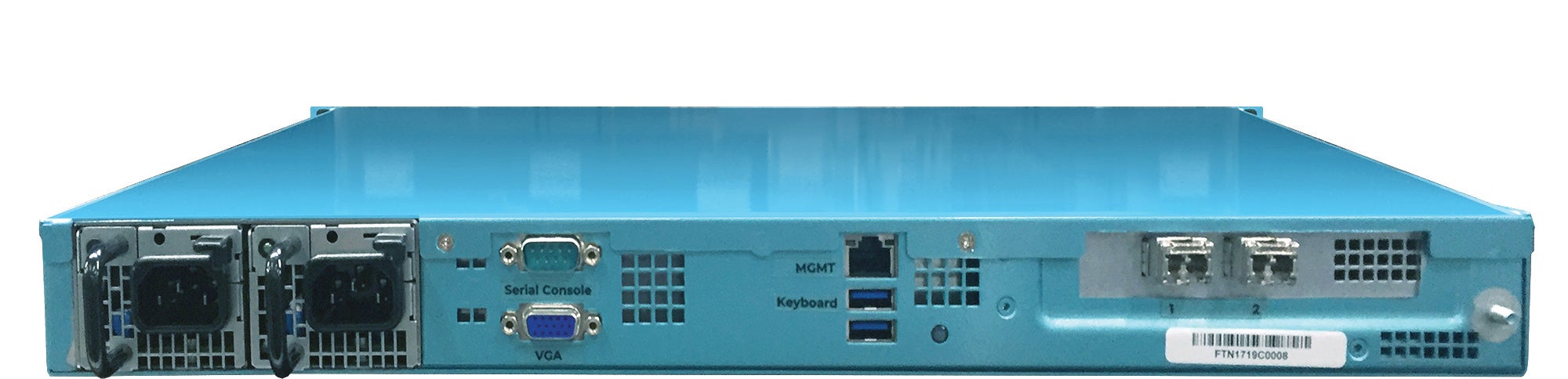

backRear view of Fortanix Runtime Encryption Appliance (FX2200 Series II)
